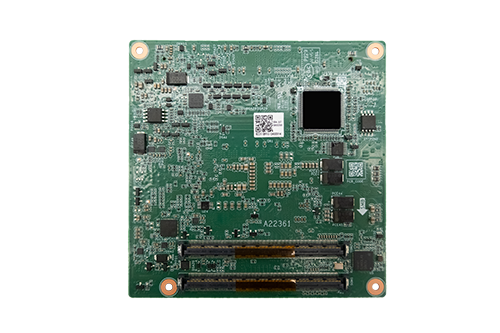

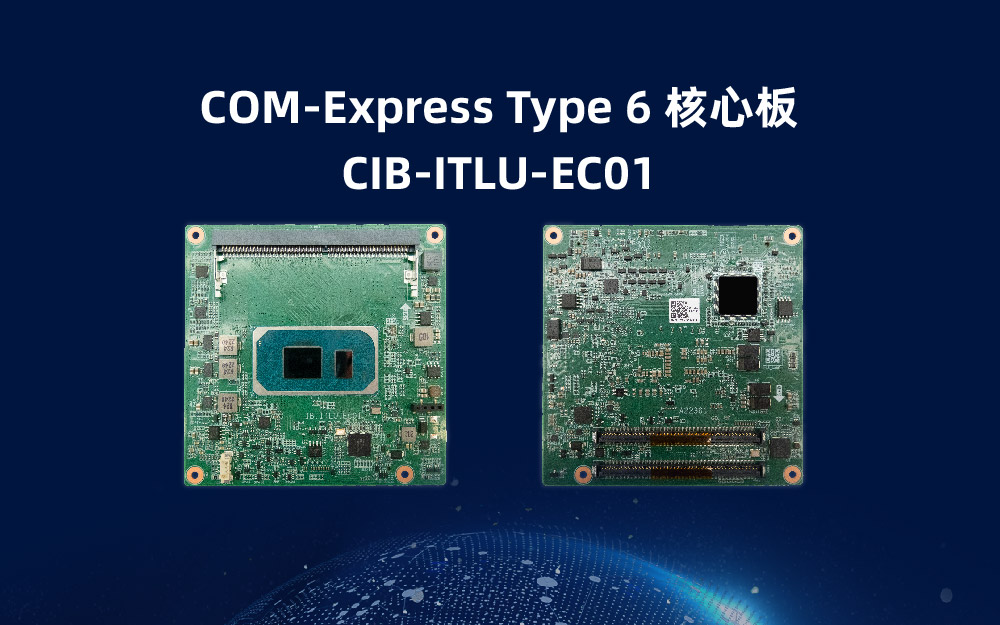

CIB-ITLU-EC01
· COM Express Compact Moudule Type 6 Pinout
· Intel® 11th Gen. CoreTM Processor Tiger Lake U-Series
· 1 x DDR4 3200MHz SO-DIMM,up to 32GB
· 支持 1 x PCIeX4，5 x PCIeX1，4 x USB3.2
· 支持适配VGA，LVDS/eDP，DP，HDMI等不同显示
· 支持COM、GPIO、TPM、CAN等功能
选择产品资料
| 网口通讯 Ethernet系统 System | |
| 处理器 Processor |
Intel®Core Processor i3-1115G4/i5-1135G7/i7-1165G7 i3-1115GRE/i5-1145GRE/i7-1185GRE/6305E |
|
内存 Memory |
1 x DDR4 3200MHz SO-DIMM |
|
BIOS |
AMI 128Mbit SPI Flash |
| 图形 Graphics | Intel®Integrated Graphics |
| 操作系统 OS |
Windows 10 64bit; Linux |
|
看门狗定时器 Watchdog Timer |
System reset, programmable 255 levels timer interval, from 1~255 sec/min |
| 接口 I/O | |
|
网口 Ethernet |
1 x Intel I226 GbE(10/100/1000 Mbps) |
|
显示 Display |
1 x LVDS dual channel: 1920 x 1200@60Hz (Co-lay eDP 4096 x 2304@60Hz) |
|
扩展接口 Expansion Slot |
1 x PCIe x4 Gen4.0 |
|
SATA |
2 x SATA 3.0(6Gbps) |
|
USB3.2(Gen2) |
4 Ports(10 Gbps) |
|
USB2.0 |
8 Ports(480 Mbps) |
|
COM |
2 x COM(2-Wire TX/RX) |
|
GPIO |
1 x 8bit programmable GPIO，default 为4in/4out |
|
CAN |
1 x CAN(Co-lay COM) |
|
TPM |
1 x TPM2.0(Optional) |
|
LPC |
Yes |
|
SPI Bus |
Yes |
|
I2C Bus |
Yes |
|
SM Bus |
Yes |
|
FAN |
Smart Fan 2 Ports: 1 port on COM module (Input Voltage:5V); 1 port on carrier board |
|
电源 Power |
|
|
电源类型 Power Type |
ATX: Vin, VSB;AT: Vin |
|
供电电压 Supply Voltage |
Vin: 4.75V - 20V;VSB: 4.75V - 5.25V |
|
环境 Environmental |
|
|
操作温度 OperatingTemp |
标准 '0°C ~ 60°C 宽温 '-40°C ~ 85°C |
|
存储温度 Storage Temp |
-40°C ~ 85°C |
|
操作湿度 Operating Relative Humidity |
40°C@95%, 非凝结状态Non-condensing |
|
存储湿度 Storage Relative Humidity |
60°C 95%RH, 非凝结状态Non-condensing |
|
随机振动 Random Vibration |
5~500Hz, 3.5Grms operation |
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
|
机械冲击 Shock |
Operation: 10G@11ms, Non-operation: 20G@11ms |
| 机构 Mechanical | |
| 尺寸 Dimension | 168 x 69 mm，标配全高挡板（可选配半高挡板） |
| 认证 Certification | |
| 安规认证 Safety Certification | CE，FCC，RoHS |
|
销售型号 Sales Model |
|
| 销售型号 Sales Model |
CIB-ITLU-EC01 |
